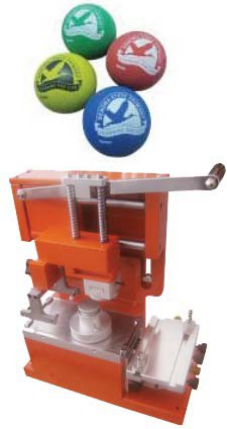

SYC-120Y 手动油盅移印机




1.概述Summery

SYC-120Y单手操作手动油盅移印机具有以下特点

SYC-120Y is a single manual ink cup shift printing machine.it has following characteristics

1)单手实现胶头水品垂直方向的驱动腾出一只手装拔印件,炒作方便:

it canrealize rubber head:”driving of harizontla and vertical direction by only one hand : the other hand is released to load the printing piece ,It is easy to operate:

(2) 设有垂直导 槽和深度限位调节块,便落胶点准确无误:上墨刮墨用先进的密闭

油盅系统,即省钱又环保:

It has vertical channer and depth positive-stop regulating black so that the dropping point of rubber head will be accurate: linking and ink scrape adopt advanced confined ink cup system which has economic and environmental proterction effect:

3)工作台上下,左右,前后调节,胶头可左右,牵头平面角度调节,调校机器方便快捷

The working table can be adjusted from top to bottom from left to right and fram front to back . Rubber head can be adjusted from left to right,from front to

back befor and in plance angle.It is convenient and quick to make adjustmant to machine

规格 油盅规格 最大刷面specification Ink cup specification:Ф70mm Maximum prirting area:Ф60mm 胶头水平行 Horizontal stroke of adhesive:120mm

胶头大垂直行 Maximum vertical l stroke of adhesive:50mm

工作最大升降 Maximum lifiting depth of working platform :55mm

工作左右前后调节 Left to right and front to back adjustment distance of working platform:±10mm

胶头后调节 Front to back adjustment distance of adhesive:±20mm

胶头右调节 Lefl to right adjustment distance of adhesive:±10mm

外形寸LxWxHmm) Overall dimension LxWxHmm):365x170*450 Weight :22kg
